The task here was to improve the machine interface to make the machine easier to use for the operators.
We used Siemens 22” Comfort Panel Pro for this project- this gave us lots of space for some fantastic visuals.

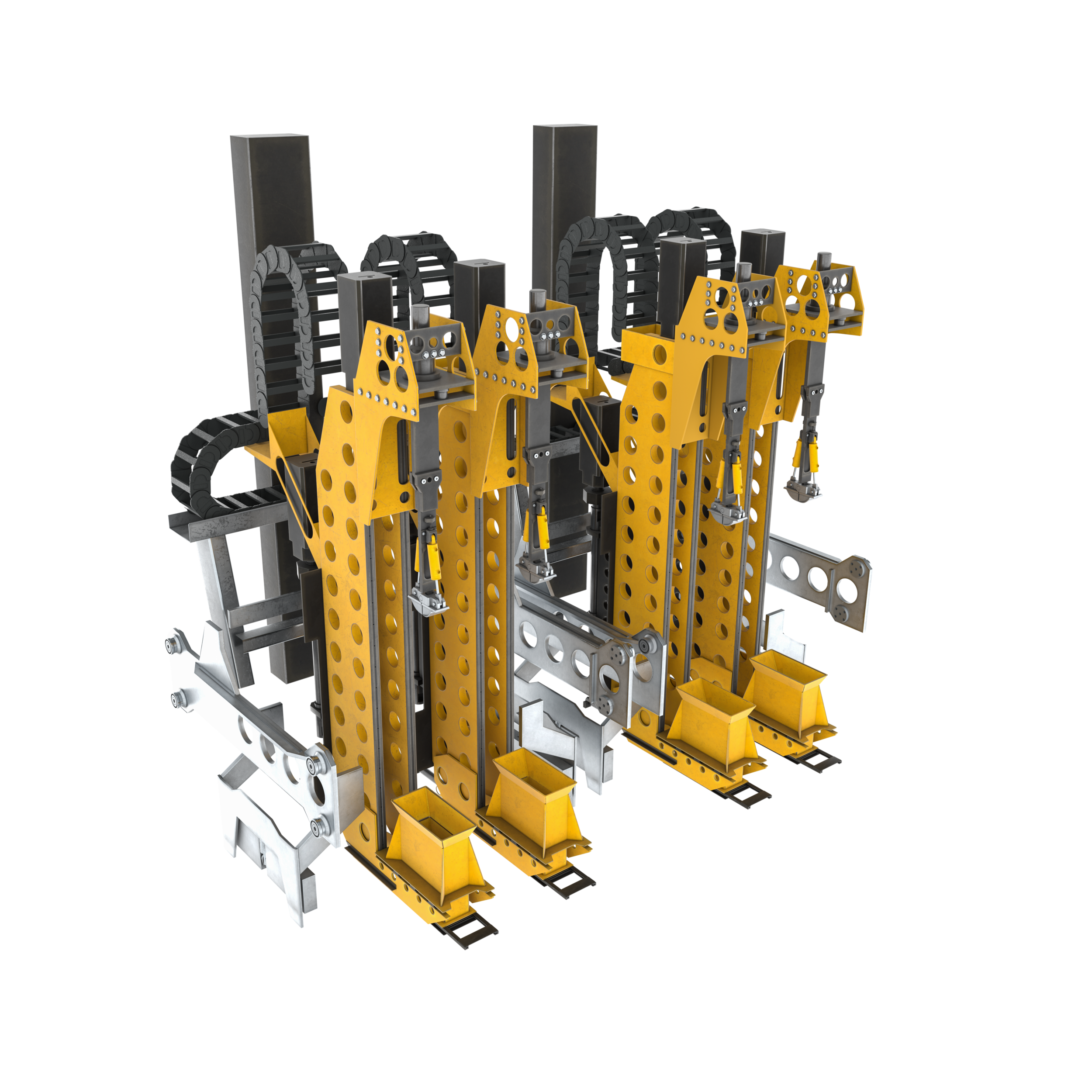

We worked in collaboration with Thunderstorm FX on this project who provided us with a 3D model of the entire machine and some amazing image renders.
Multi-layered images gives the operator the ability to zoom into the sections of the machine to pin-point fault locations as well as IO status at any location.
The finished product was a very neat easy-to-use HMI
